Anti vibration

Slab Mat Damper

The Slab Mat Damper is a resilient mat made of natural recycled rubber that surrounds floating slabs of concrete railway tracks and significantly reduces the level of vibration in urban areas (-20 dB @ 63Hz)

Mass Spring System for floating slab track

The Slab Mat Damper is one of the best solution for Mass Spring Systems and is specifically designed for embedded tracks and concrete tracks.

The Slab Mat Damper is a resilient mat made of natural recycled rubber that supports the floating slab track and significantly reduces the level of vibration in urban areas (-20 dB @ 63Hz).

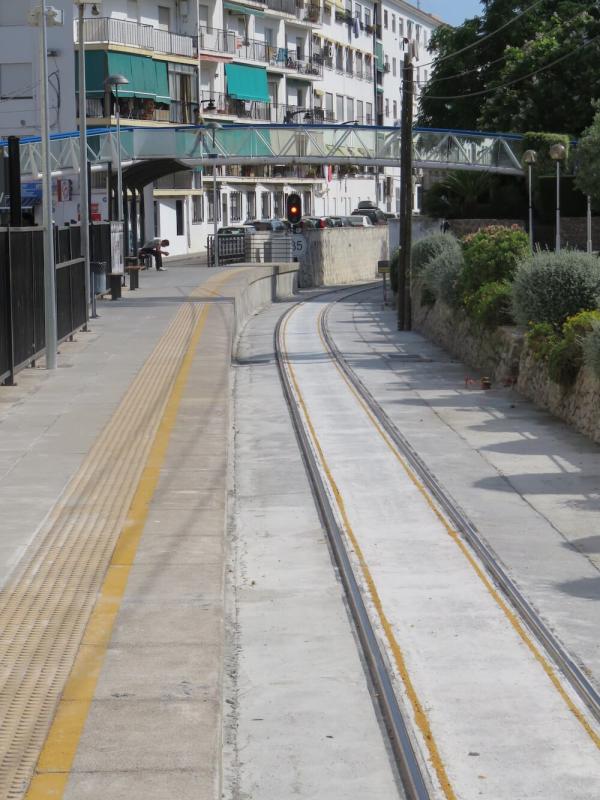

Altea / Alicante

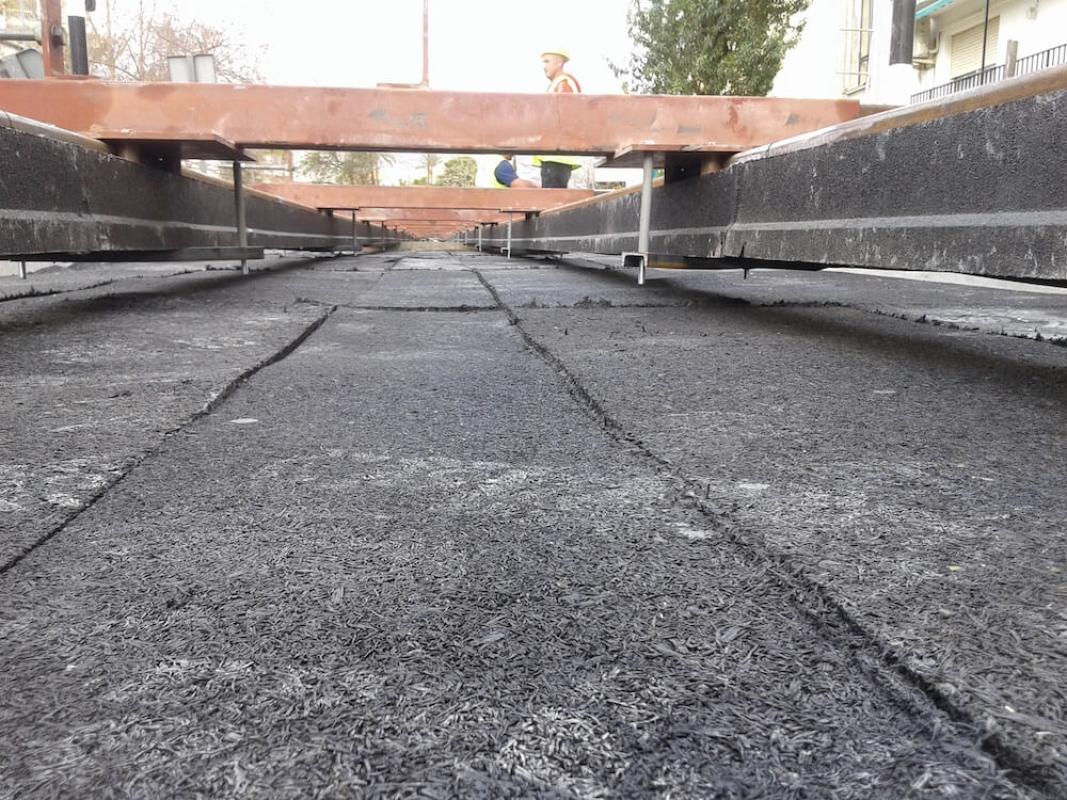

Altea / Alicante

Altea / Alicante
Altea / Alicante

Thicknesses, shapes and densities

The Slab Mat Damper has a bottom wavy surface and a flat top one, which provides excellent resilience and an optimum dynamic behavior.

This product can be installed in a single layer or double layers, either for prefabricated sections or “on site” when it comes to pour concrete on a railway track.

It fits very well tramways or traditional railway tracks for high speed trains in urban areas. It is very protective to wet conditions thanks to its permeability and drainage features and is also resistant to frost and fatigue (tested according to DIN 45673-7).

Applications

The Slab Mat Damper is particularly suitable for :

  • Tramways and underground railway tracks
  • Tunnel railway tracks
  • High-speed railway tracks in urban areas
  • Prefabricated concrete railway tracks or traditional railway tracks

Benefits

Very effective solution for the reduction of vibration pollution

Quick and easy installation

Excellent handling performance over time

Ecological friendly solution for the environment (100% recycled and recyclable)

Technical informations

Composition
Natural recycled rubber bonded with a polyurethane binder
Colour
Black
Thickness
15 - 50 mm
Density
640 Kg/m3  or 710 Kg/m3
Mitigation of vibrations
> 20 dB
Resistance to fatigue (DIN 45673-7)
Variation Kstat >20%
Resistance to frost (DBS 918 071-1)
Variation Kstat >20%
Dimensions
In sheets of 10 x 1m
